Rotary Hoe

Remove small weeds and loose crusted or compact soil to aid in crop emergence

  • Blind cultivation tool for in-row weed control
  • Producers save time and money

Field of application

It´s the perfect machine for removing small weeds and loosening crusted or compact soil to aid in crop emergence.
Use nearly all cultures like corn, grain, rape, soy etc.

It disturbs 100 percent of the soil surface without regard to crop rows. Producers save time, because you need a working speed from 10 to 20 km/h.

If the plants have reached around 10 centimetres it´s possible to start working.

Hatzenbichler Rotor Striegel

Machine description

Stern

Working widths from 3,20m 3-point to 12,20m semi-mounted up to 3m working width, hydraulic folded.

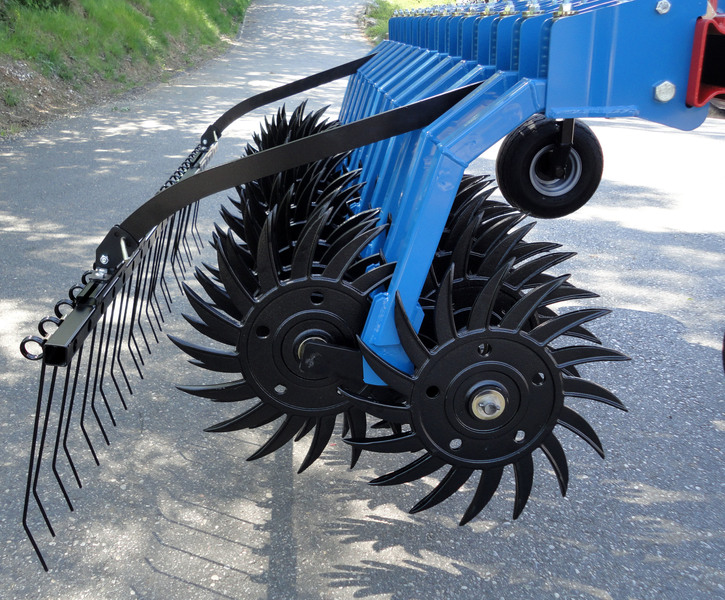

The rotating stars made of special casted metal with double row ball bearing and scooped laces. Each star have a diameter fo 550 milimetre. The star-holders are clutched with the same profile-frame like the chipping elements out of the chipper machine programm.

Stern

You have two options for rotary the stars:

  • positive for very crusted soil
  • negative for stony soil

Easy setup of the machine

With the support wheel you can regulate the working deep of the stars. With two springs at each holder gives about 50kg pressure at each star.

Comb harrow

At the end you can use a comb harrow which put out the weed of the soil for going out.

Rotary hoe also possible to use with pneumatic seeding machines. For more Information look to pneumatic seeding machine.

Hatzenbichler Rotor Striegel

Rotary Hoe

Remove small weeds and loose crusted or compact soil to aid in crop emergence

Videos

Hatzenbichler Rotary Hoe in detail

Hatzenbichler saddled up rotary hoe 12,20 m in use

Technical details

Hatzenbichler rotary hoe

3-point rotary hoe

working width holder stars wheels weight in kg kW HP
3.20 m 18 36 2 900 58 80
4.40 m 25 50 2 1200 66 90
6.40 m 36 72 2 1700 80 110

Pull type rotary hoe

working width holder stars wheels weight in kg kW HP
9.40 m 52 104 2 5900 110 150
10.60 m 60 120 2 6400 117 160
12.20 m 58 136 2 7000 132 180
