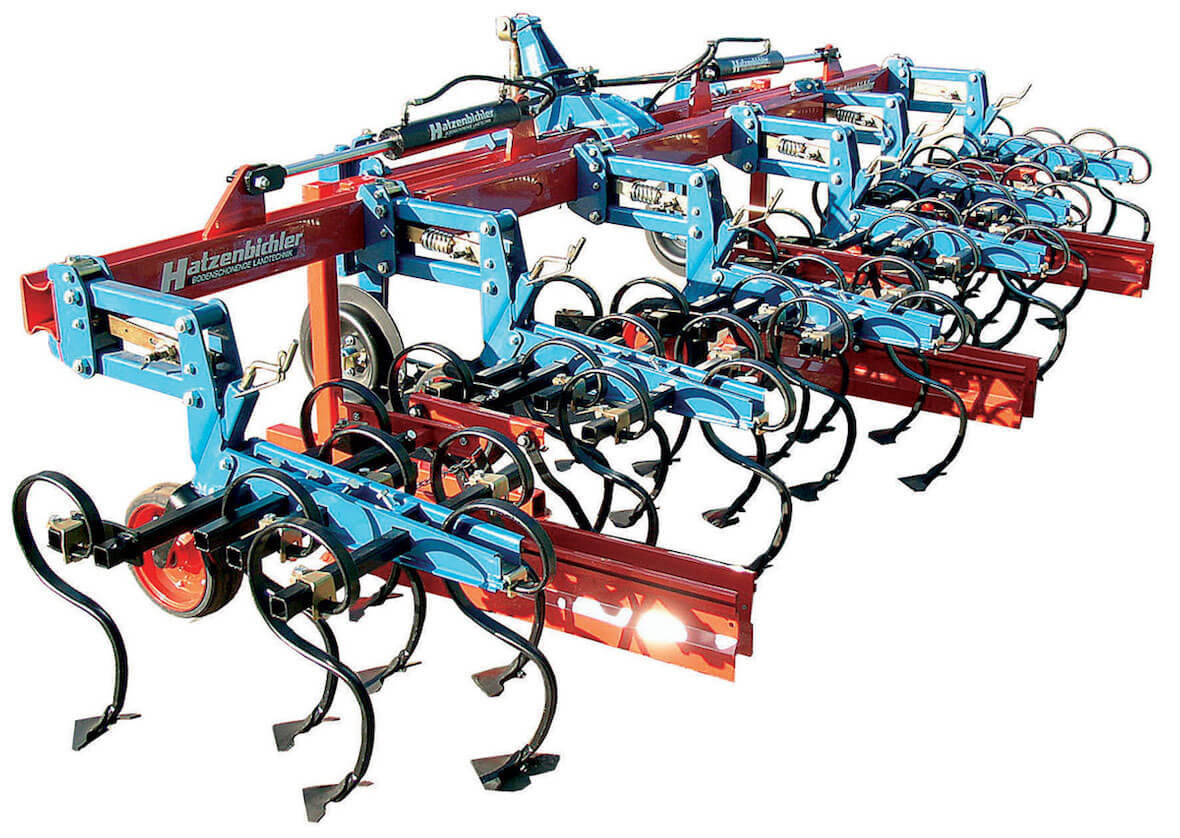

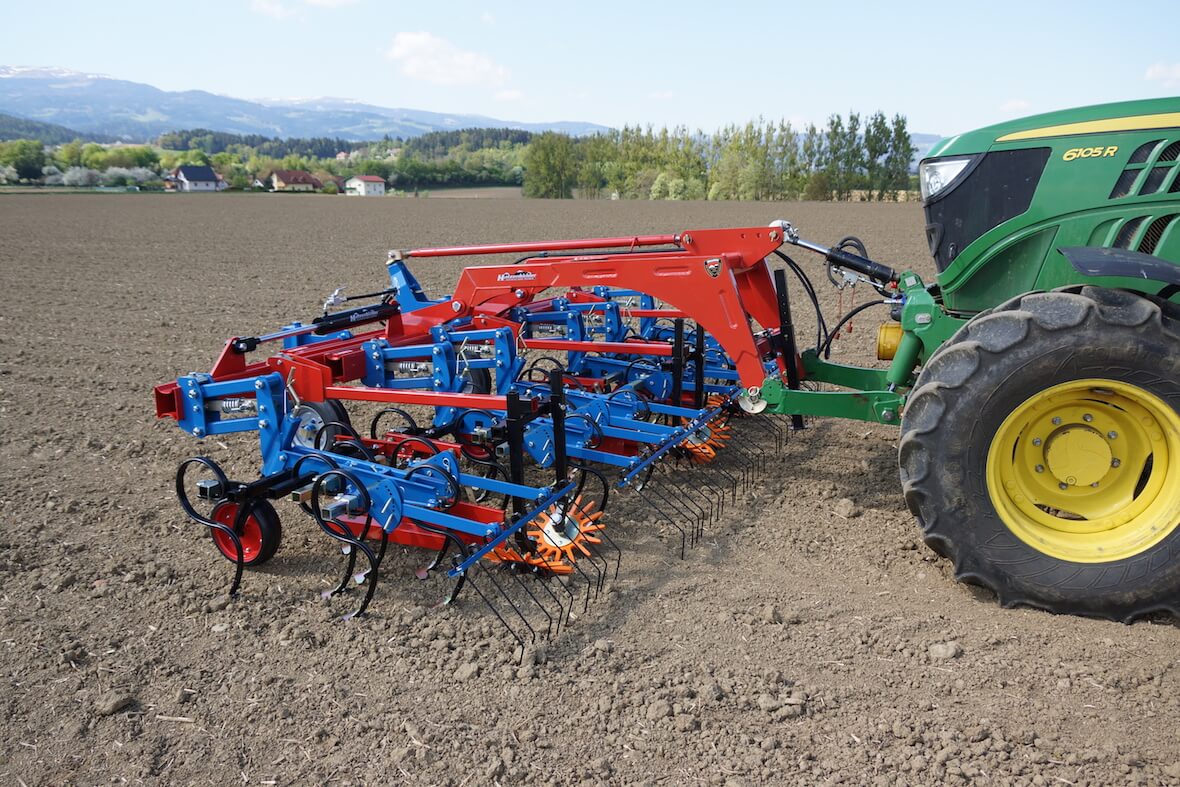

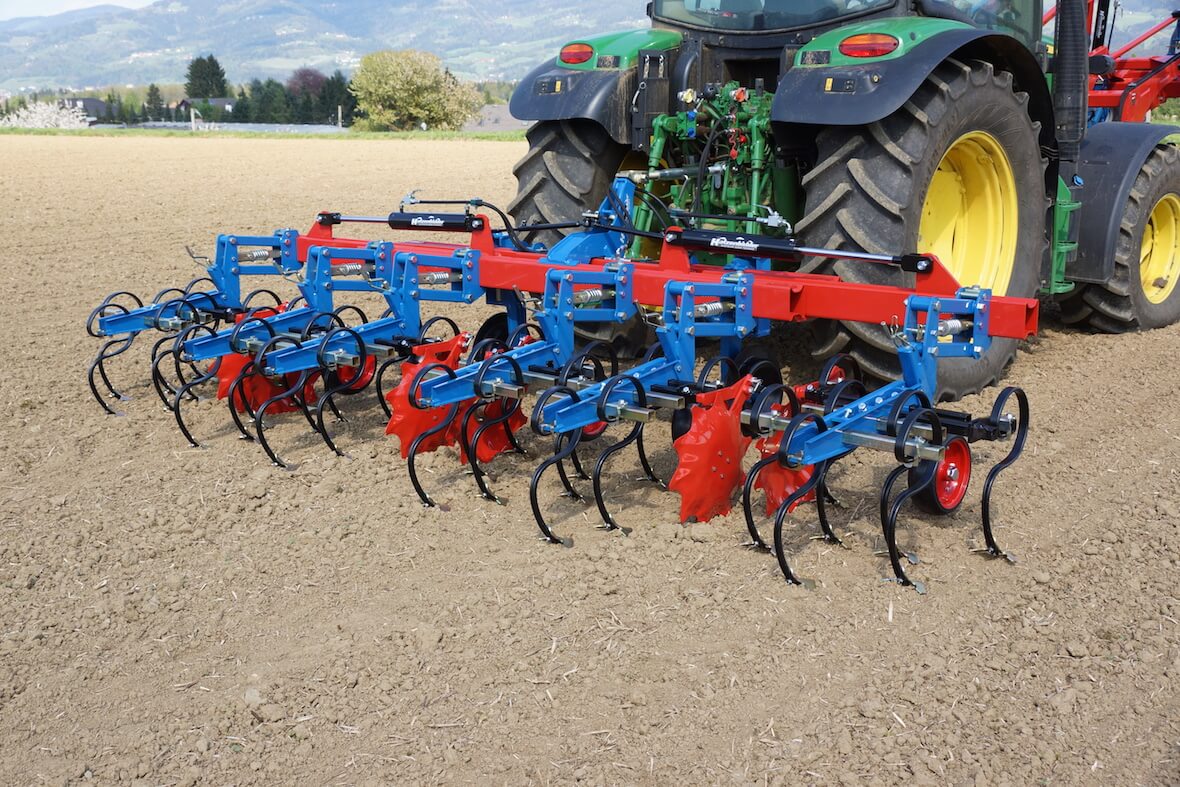

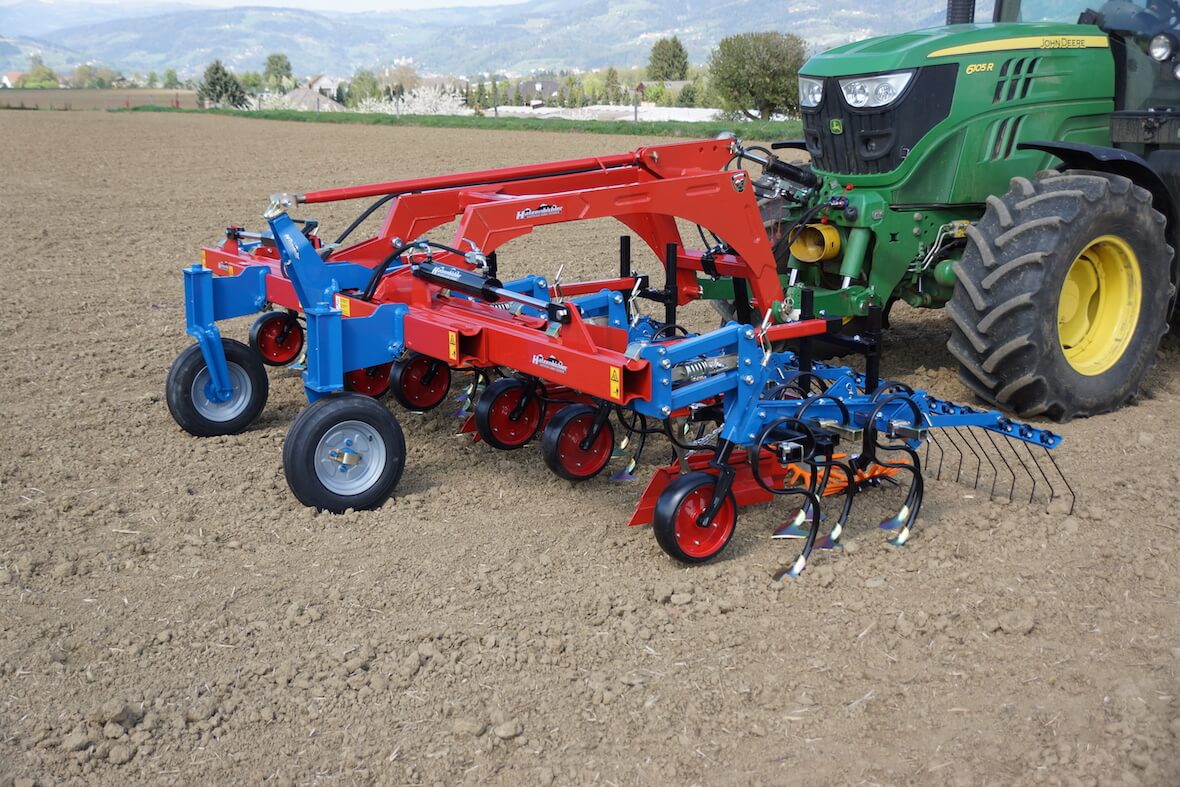

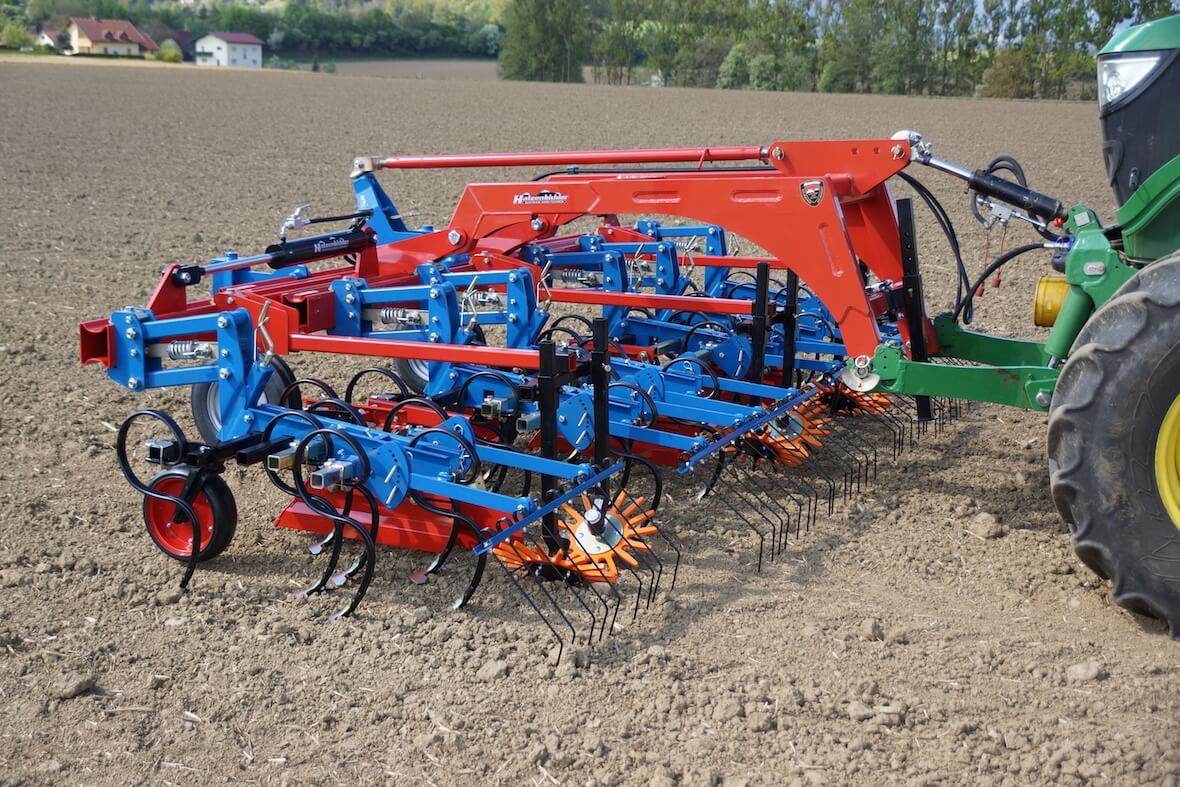

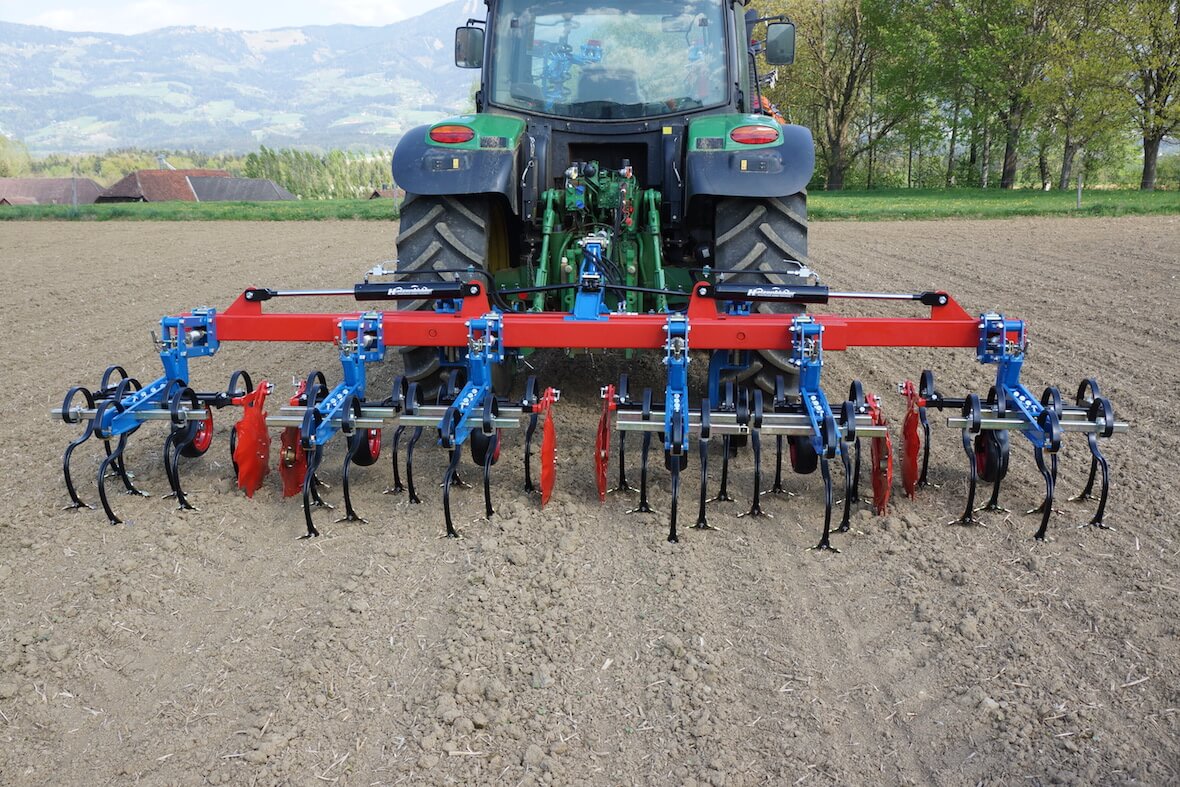

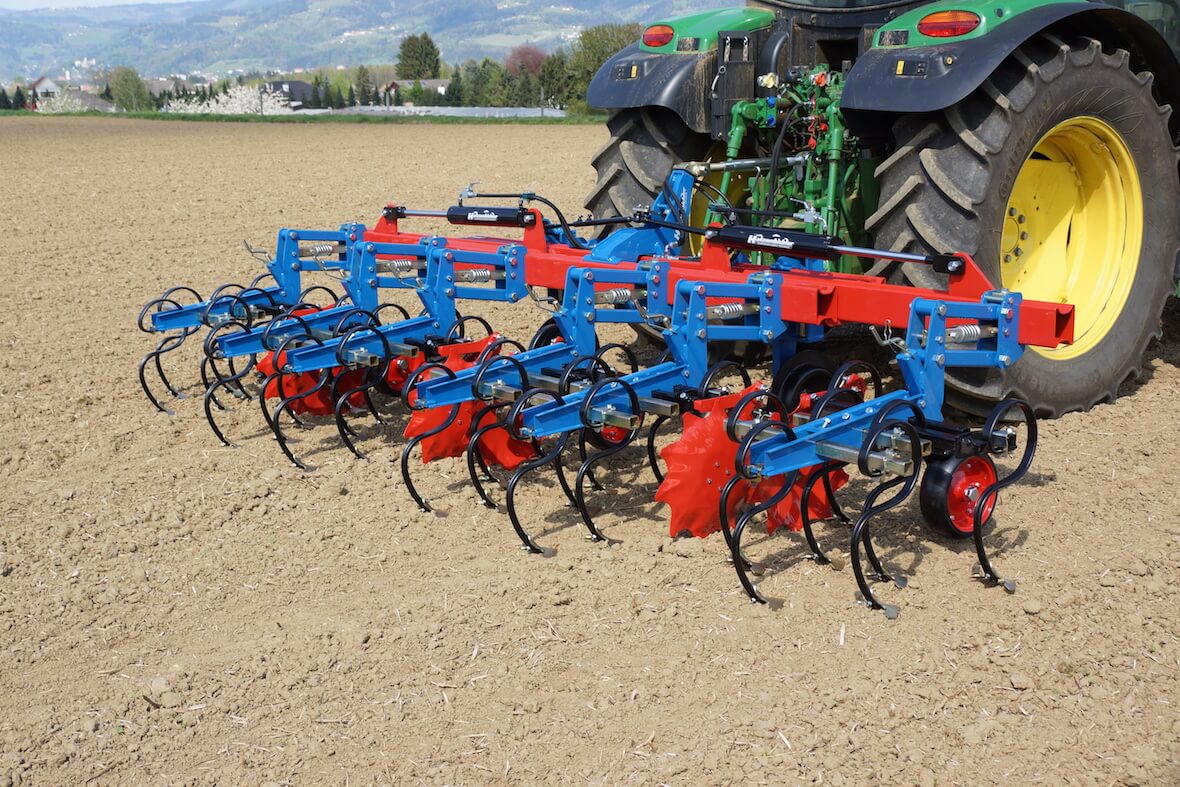

Pumpkin and strawberry interrow cultivator

For mechanical weed control between the plant rows

  • Row distance of 150 cm to 210 cm
  • Stepless working width adjustment by loosening one screw at the parallelogram

The pumpkin and strawberry interrow cultivator is offered with a row distance of 150 cm to 210 cm and 1-row working width up to 3-rows working width.

The machines are rigid or hydraulic foldable, can be mounted in front or rear.

Use for mechanical weed control between the plant rows.

It is offered with rubber of flanged support wheels.

Tool carrier with s-tines and duck foot shares, 150mm wide.

S-tine
S-Zinke mit Gänsefußschare Querschnitt: 32x12
Duck foot share
Gänsefußschare 150mm
Kürbis- und Erdbeerhackmaschine

Stepless working width adjustment by loosening one screw at the parallelogram. Parallelogram with ball bearing farmflex wheel for depth control on each "chop body" with smooth spindle adjustment.

Additional equipment

Earthing up share
Anhäufelschare
Plant protection plate
Pflanzenschutzblech
Plant protection disc
Pflanzenschutzscheibe

Pumpkin and strawberry interrow cultivator

Stepless working width adjustment at the main frame

Technical details

Pumpkin and strawberry interrow cultivator

Standard equipment

  • 3-point hitch
  • rubber or flanged support wheels
  • profile tube main frame bar
  • automatically steering with top link spindle
  • tool carrier "pumpkin and strawberry" full, with 7 pcs. s-tines with duck foot shares (150mm)
  • parallelogram with ball bearing farmflex wheel for depth control on each "chop body" with smooth spindle adjustment

Additional equipment
