Camera steering assistant

The working target of the camera steering assistant is to do mechanical work more accurate, efficient and convenient

  • The interrow cultivator becomes steering automatically
  • Higher working speed in this way higher area perfomance

The working target of the camera steering assistant is to do mechanical work more accurate, efficient and convenient.

An Advantage besides the support of the driver is the higher working speed and in this way higher area perfomance.

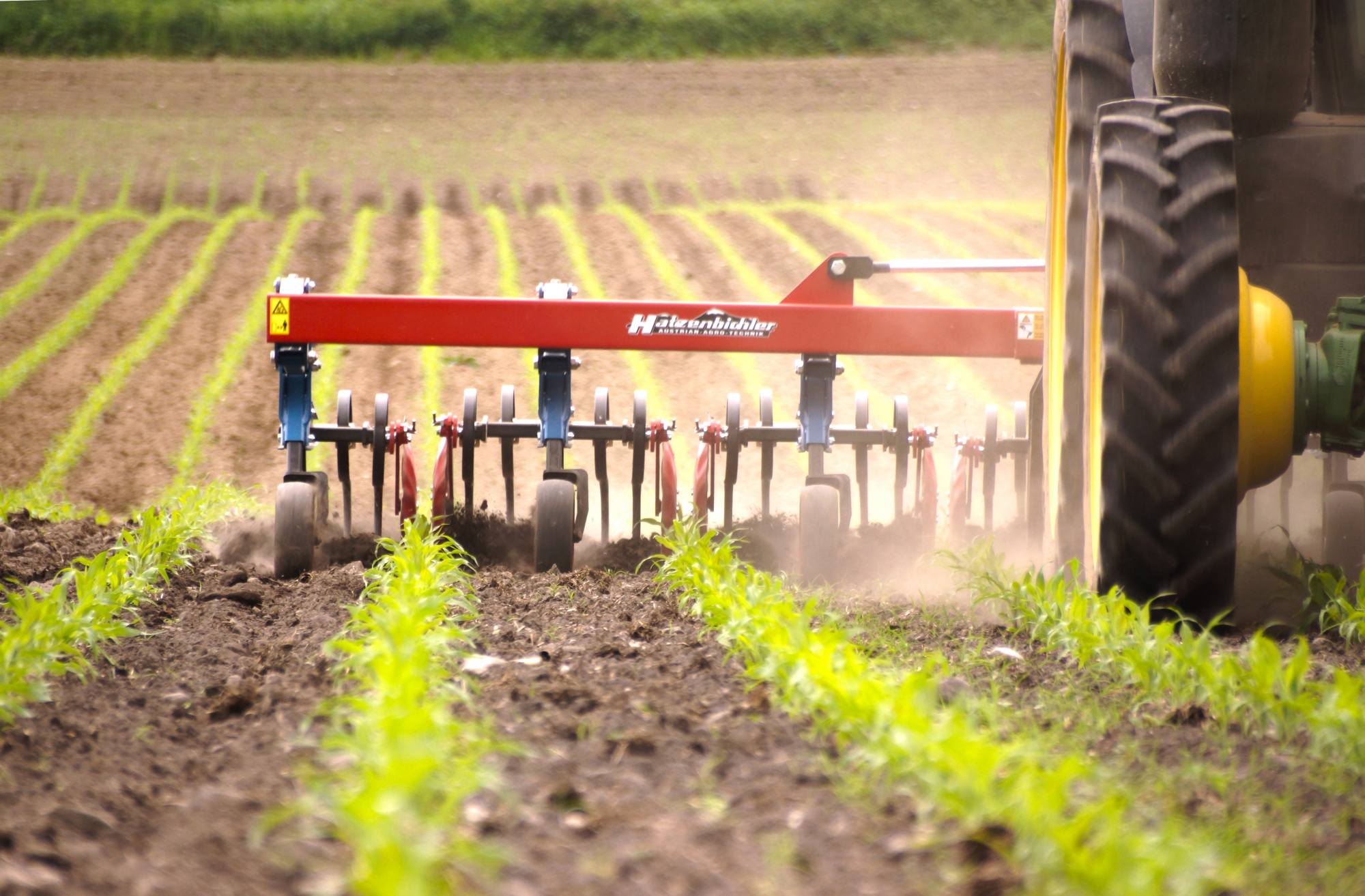

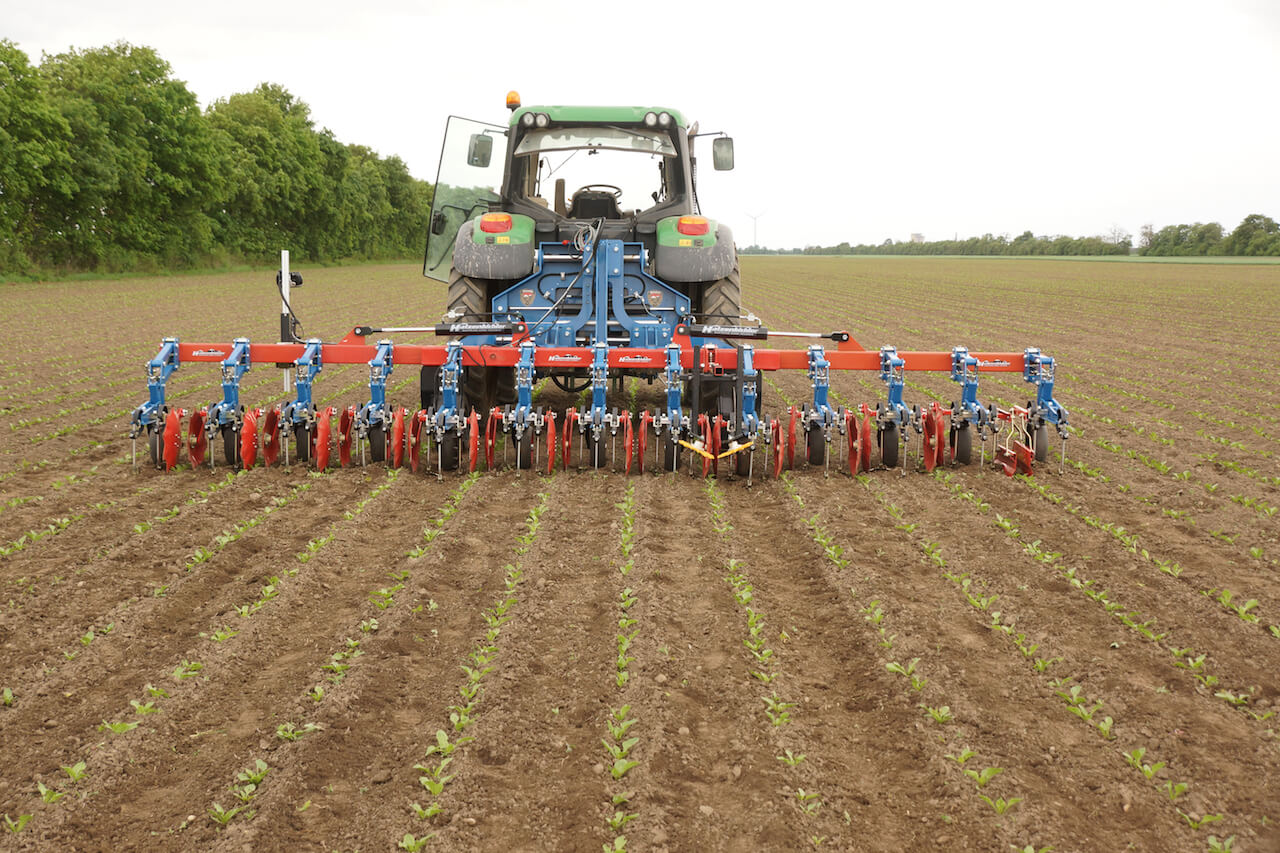

The interrow cultivator can be moved closer to the plant rows, in this way you will have a clean and exact work result.

The Hatzenbichler camera steering assistant is only available and retrofittable with Hatzenbichler interrow cultivators.

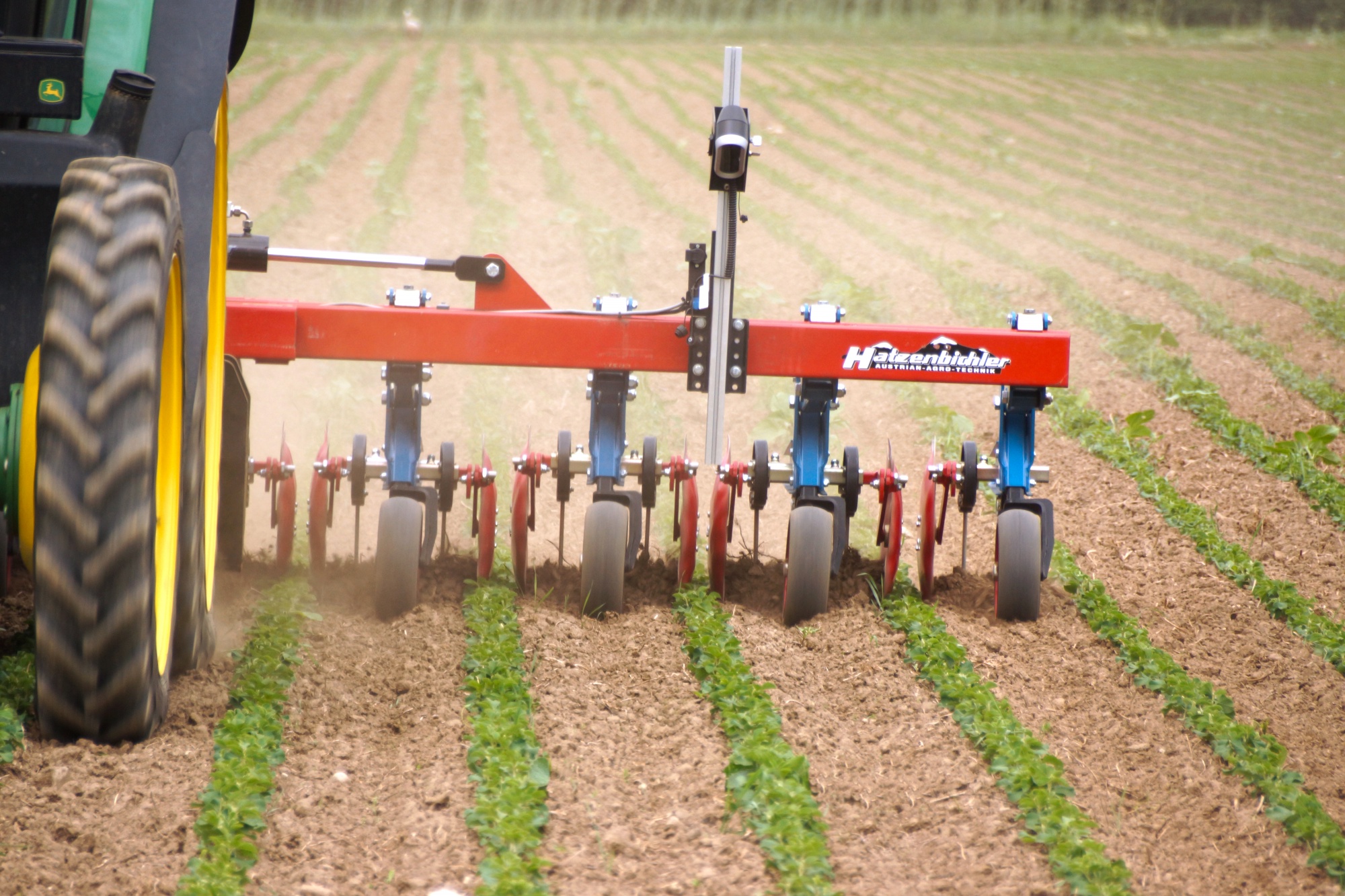

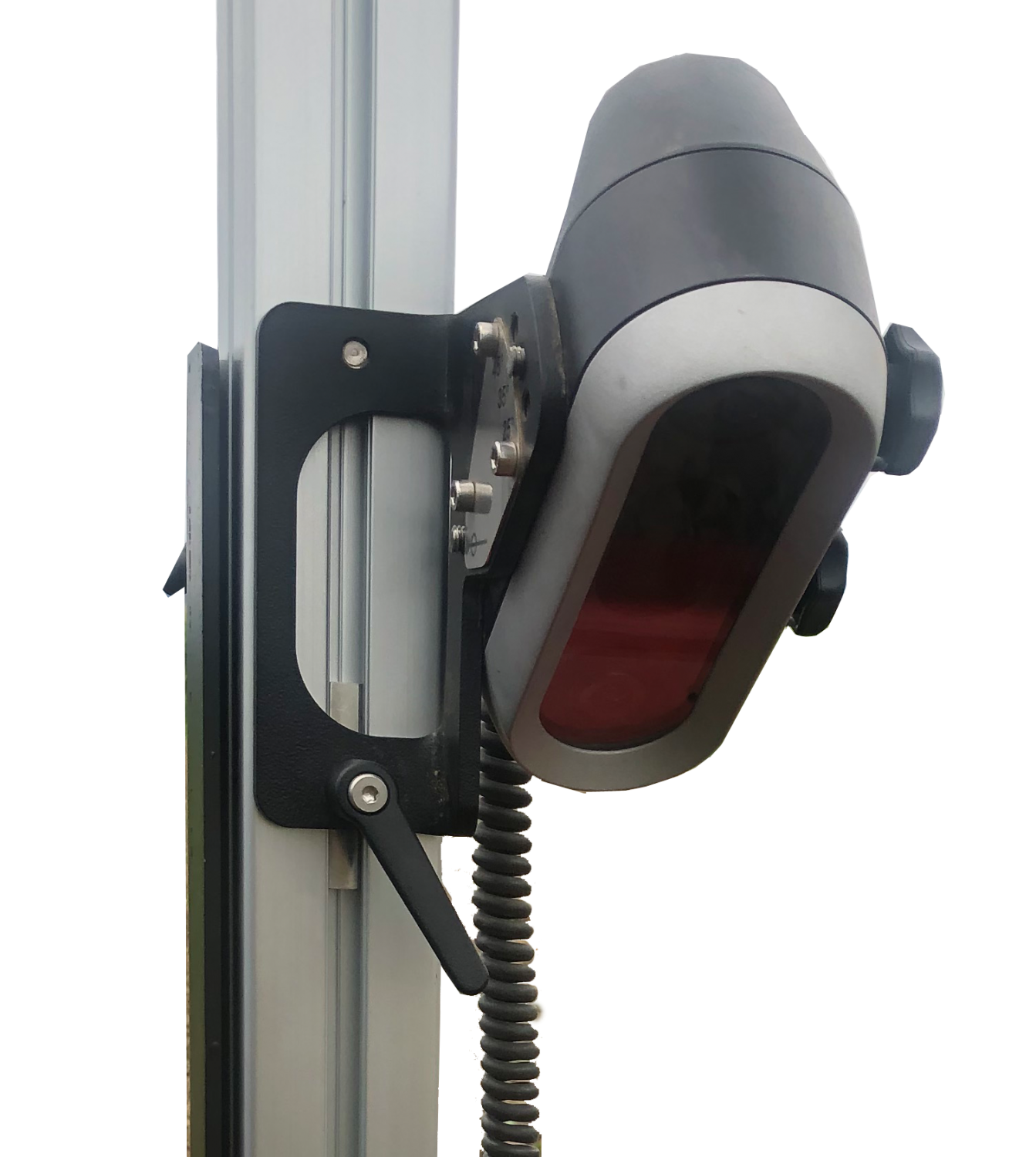

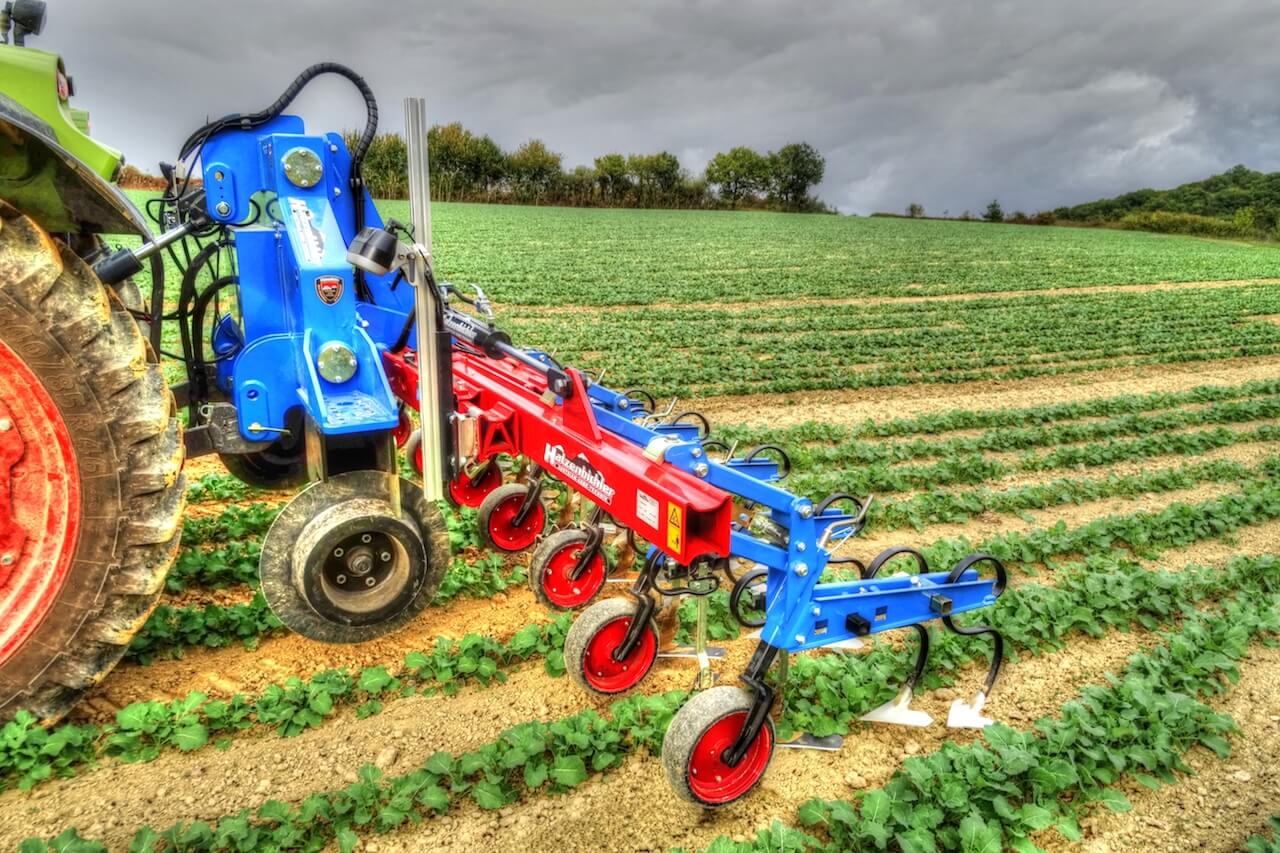

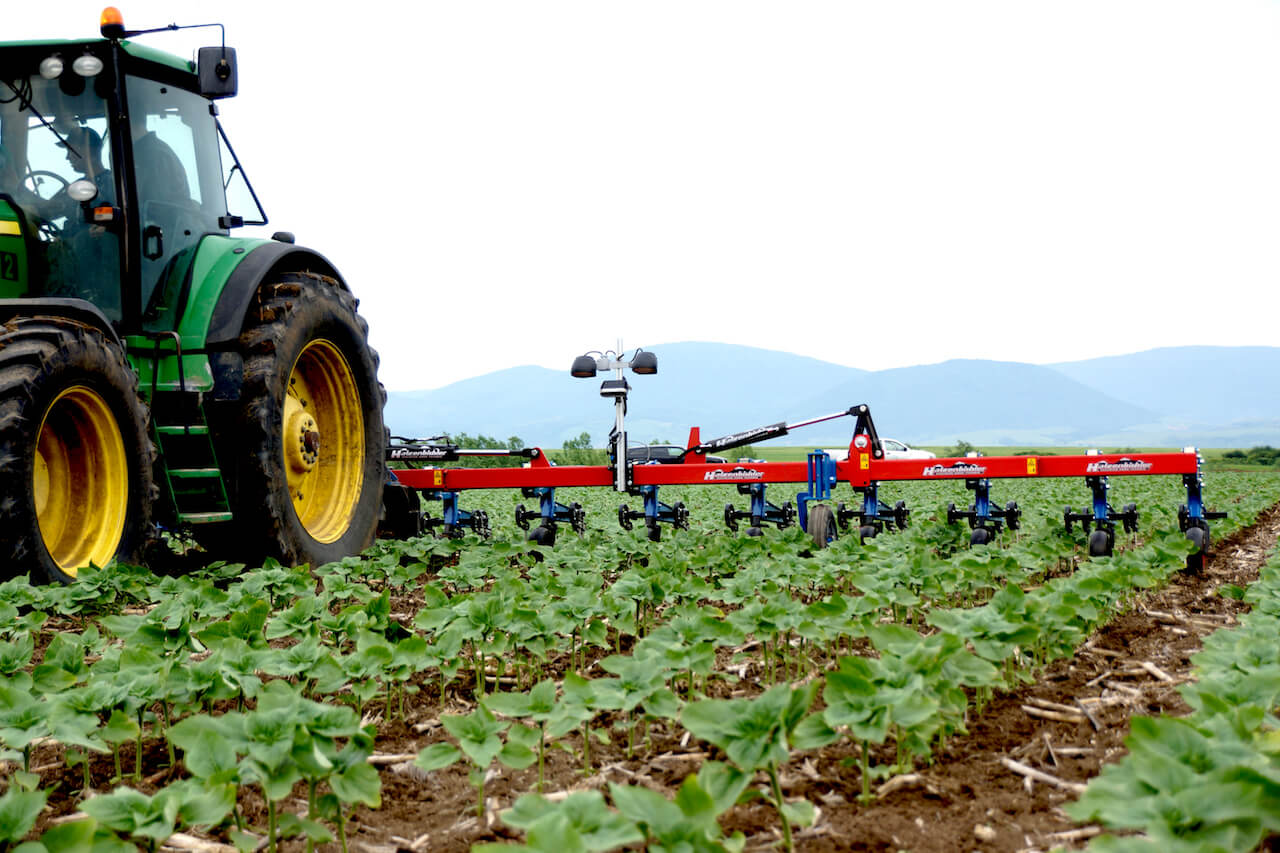

The camera with the two optical lenses is mounted over the plant rows.

There are three different types of sliding frame:

  • "Light"
  • "Standard"
  • Heavy XL"

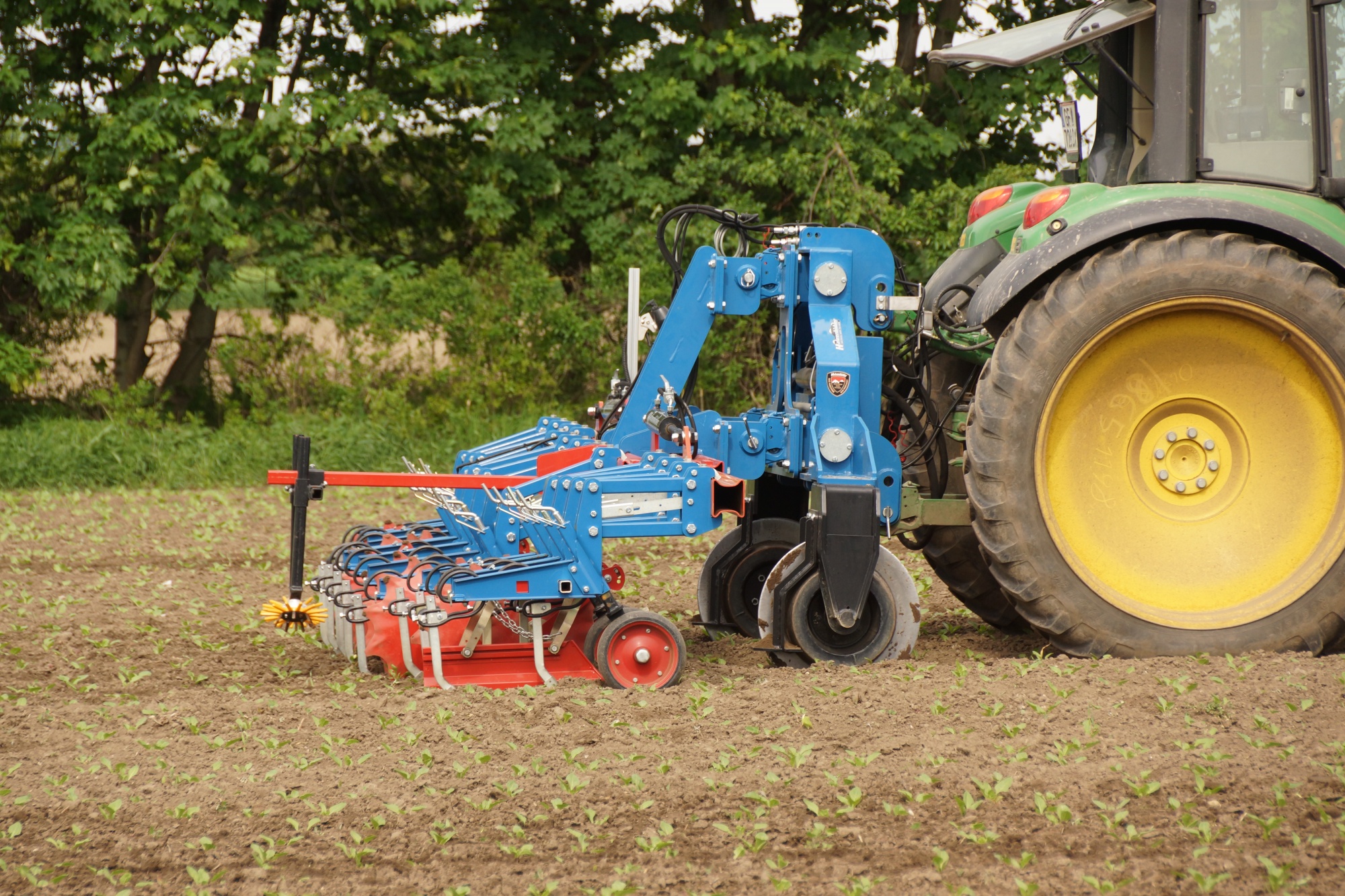

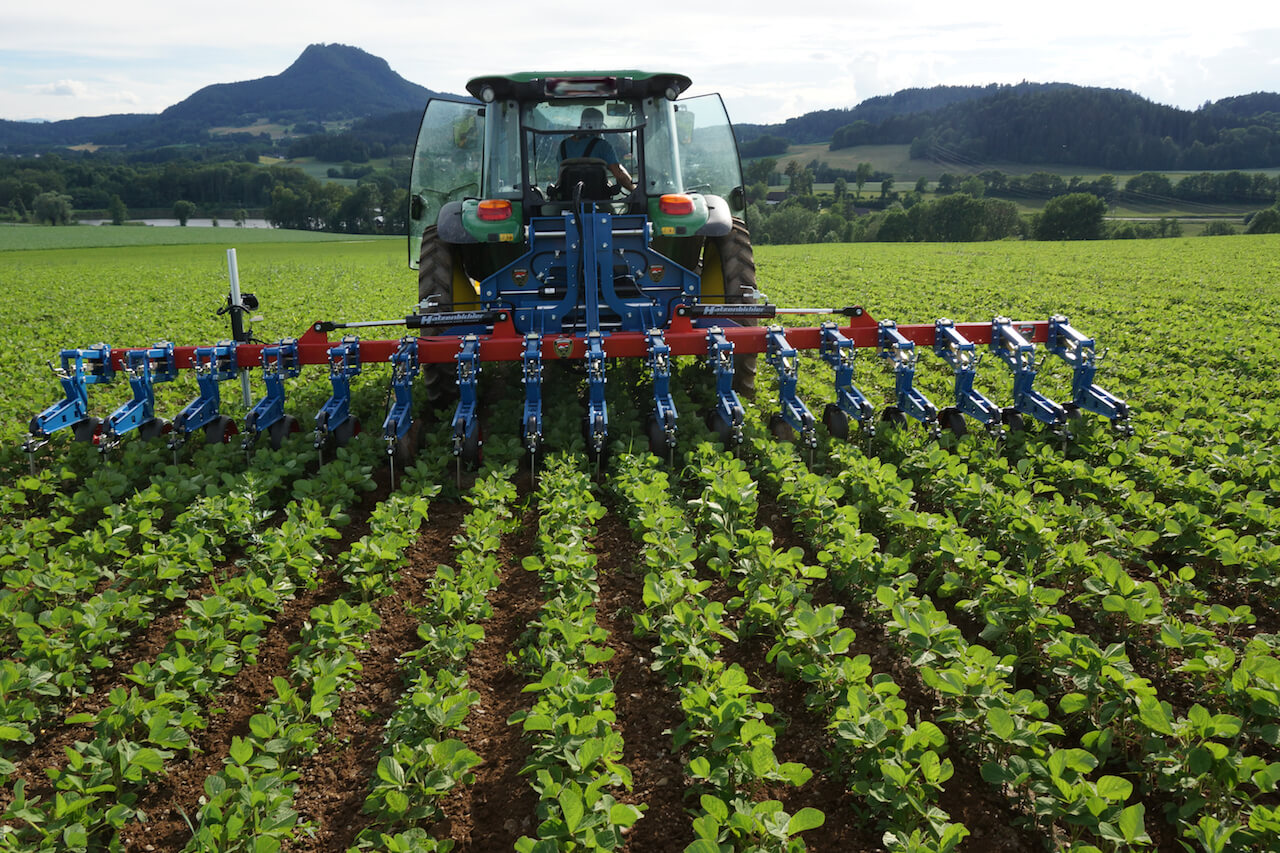

With the dual cylinder are the same shunting speed on the left and on the right side. Shunting wide each models are on the left and right side total 500mm. On the models “Standard” and “Heavy XL” are 2 pieces stabilizer wheels mounted.

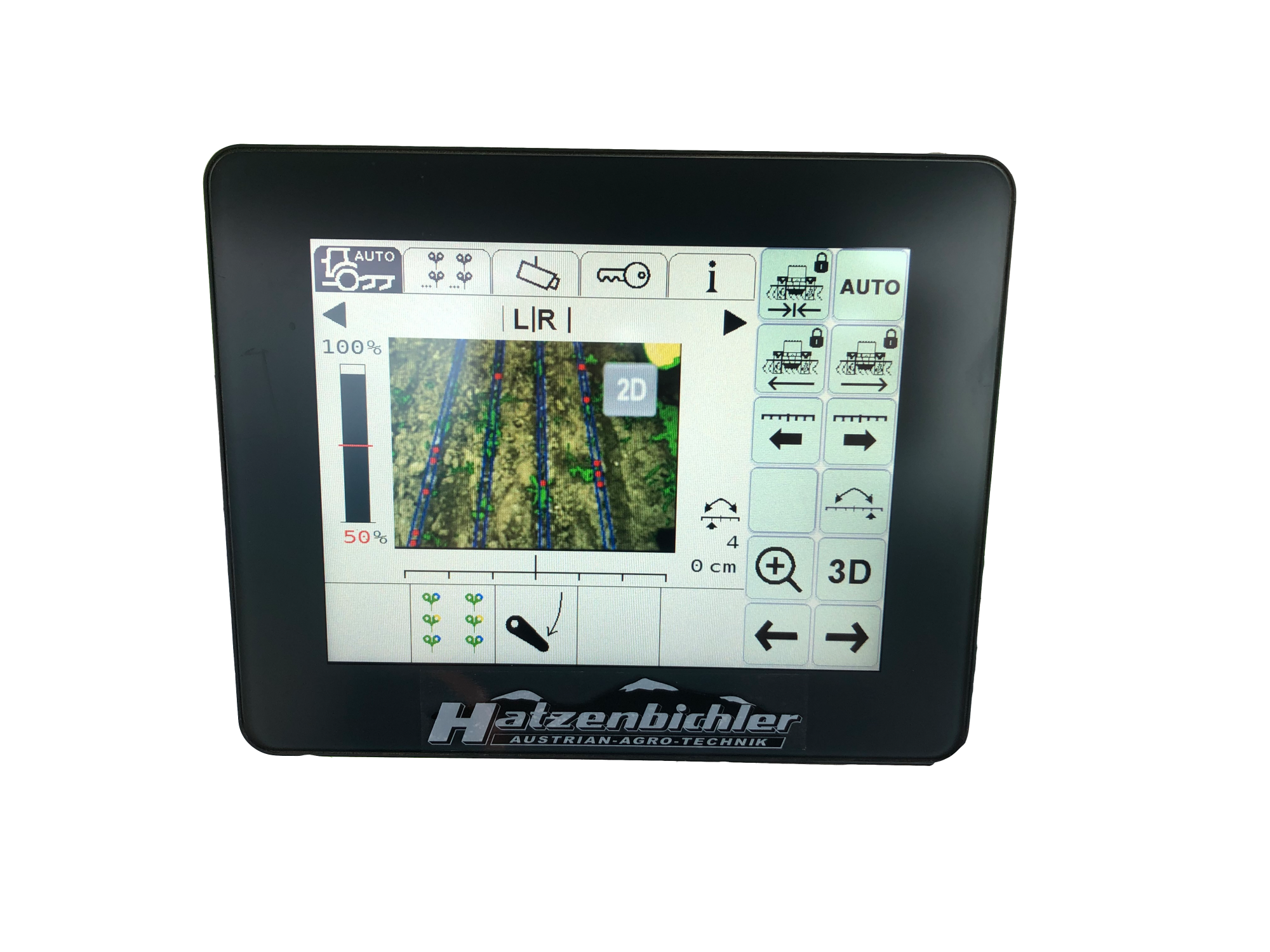

Camera system with color display and two optical lenses offer an optimal rows detection.

Camera steering assistant

The working target of the camera steering assistant is to do mechanical work more accurate, efficient and convenient

Video

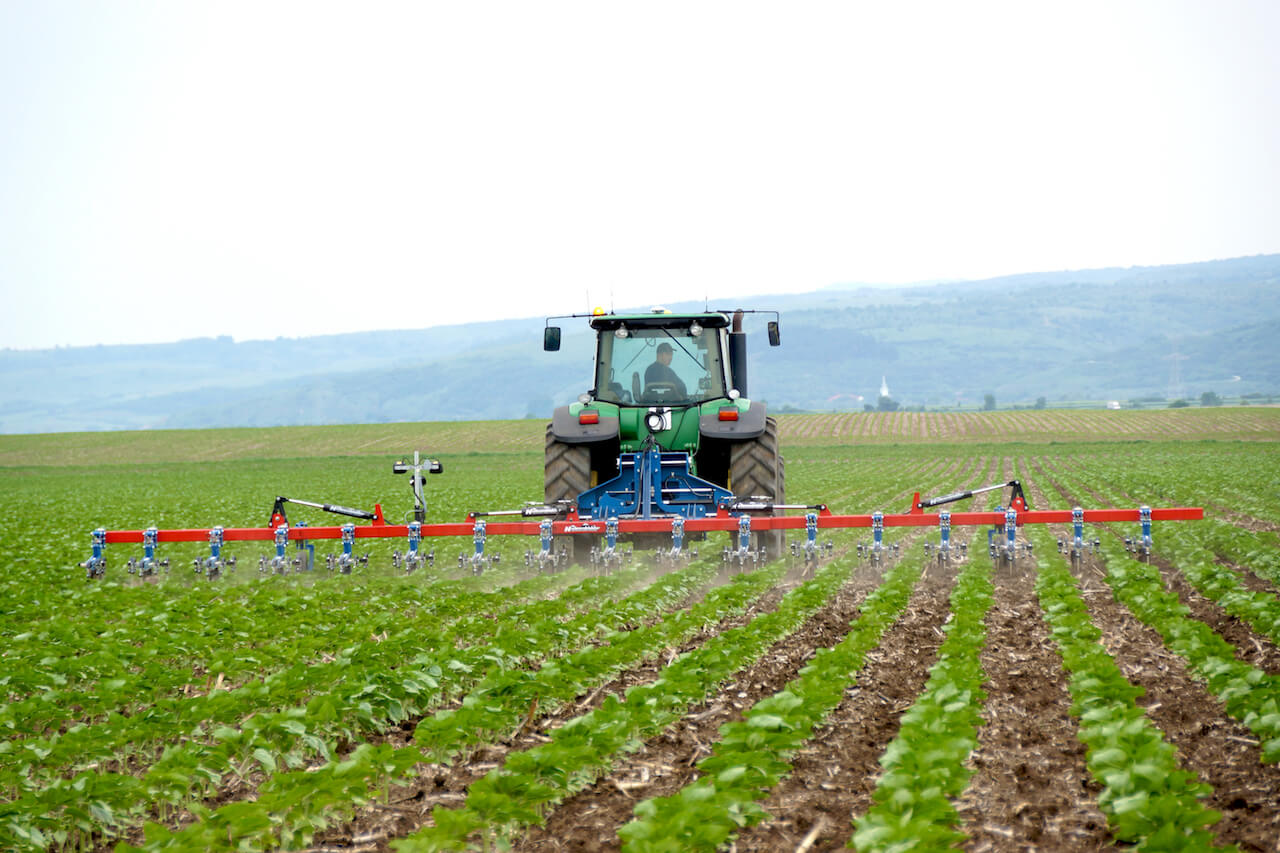

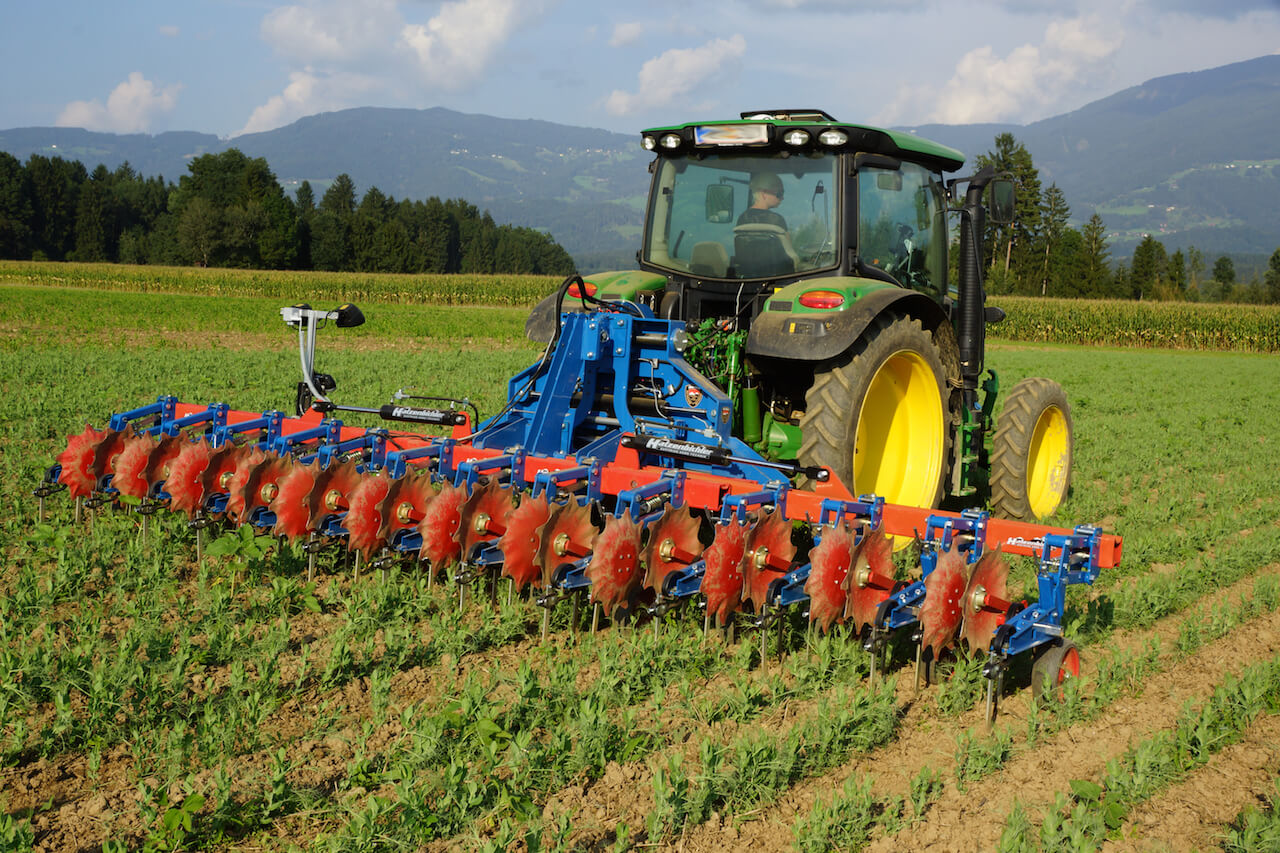

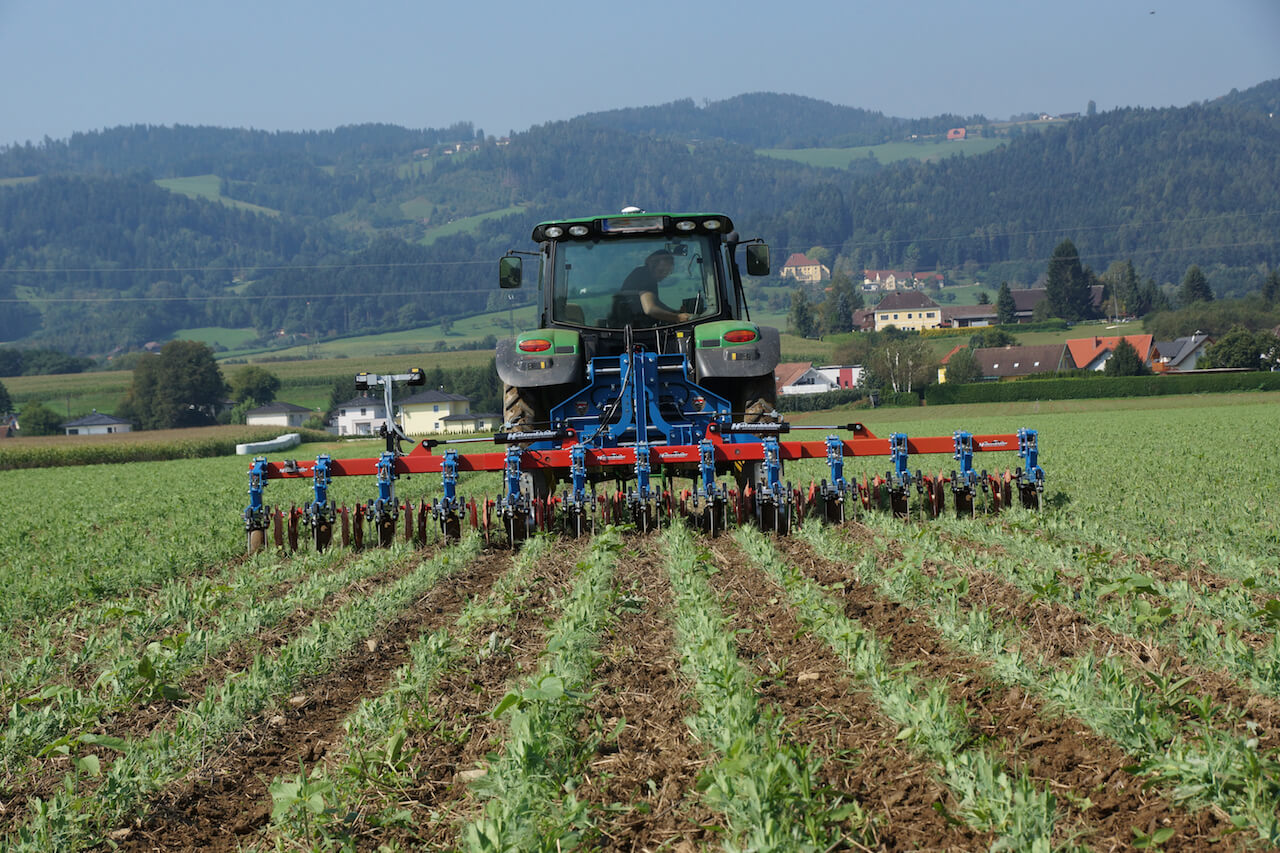

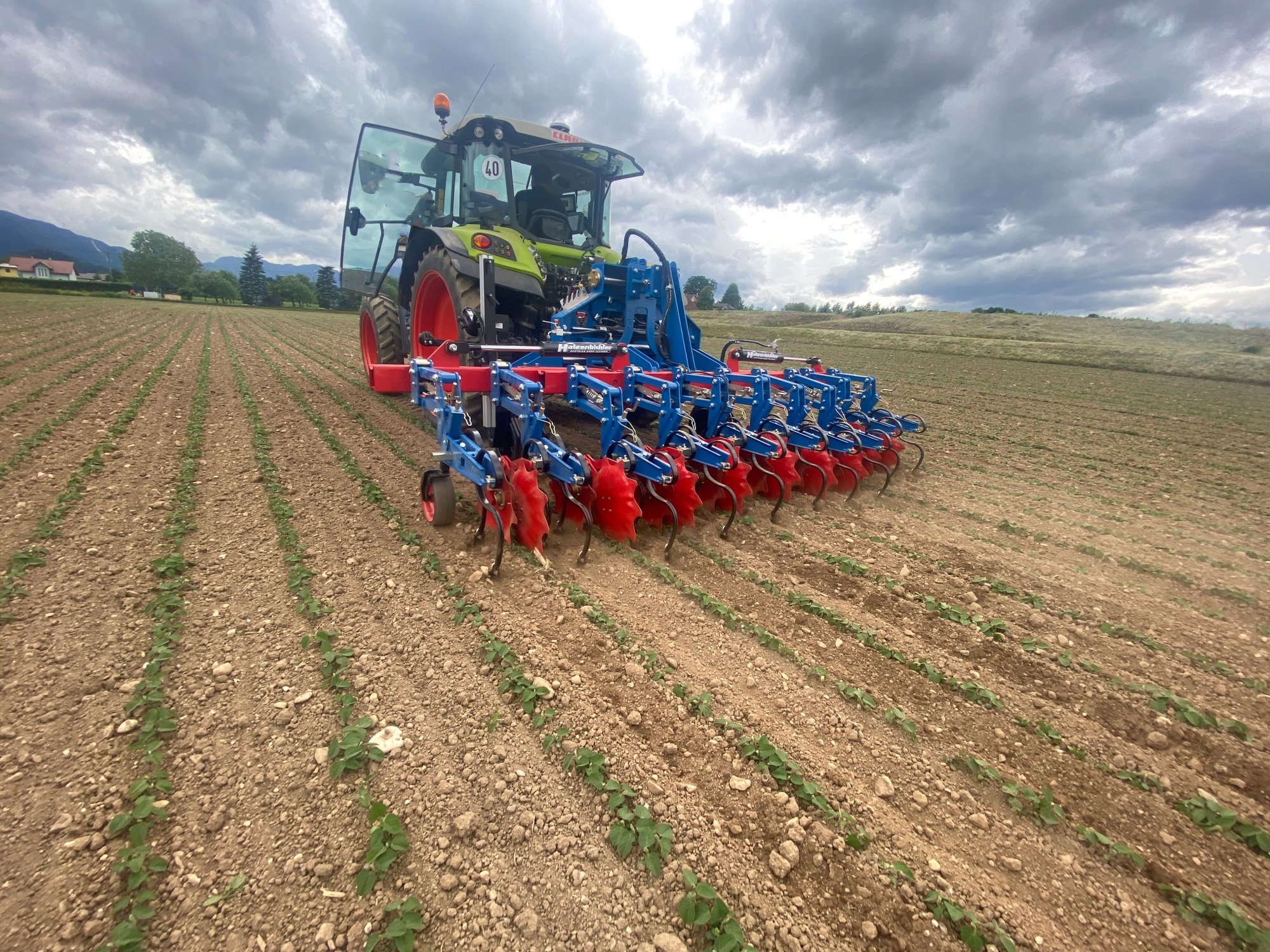

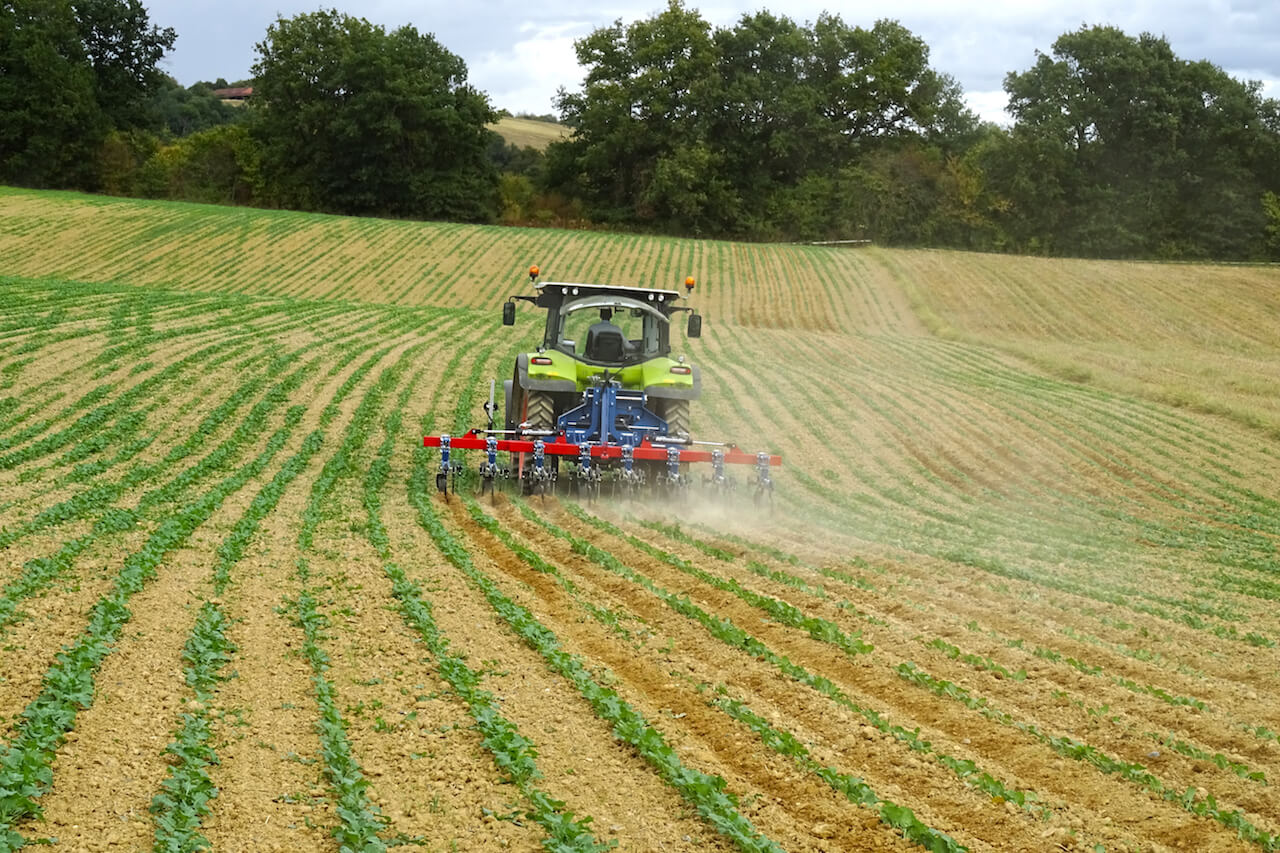

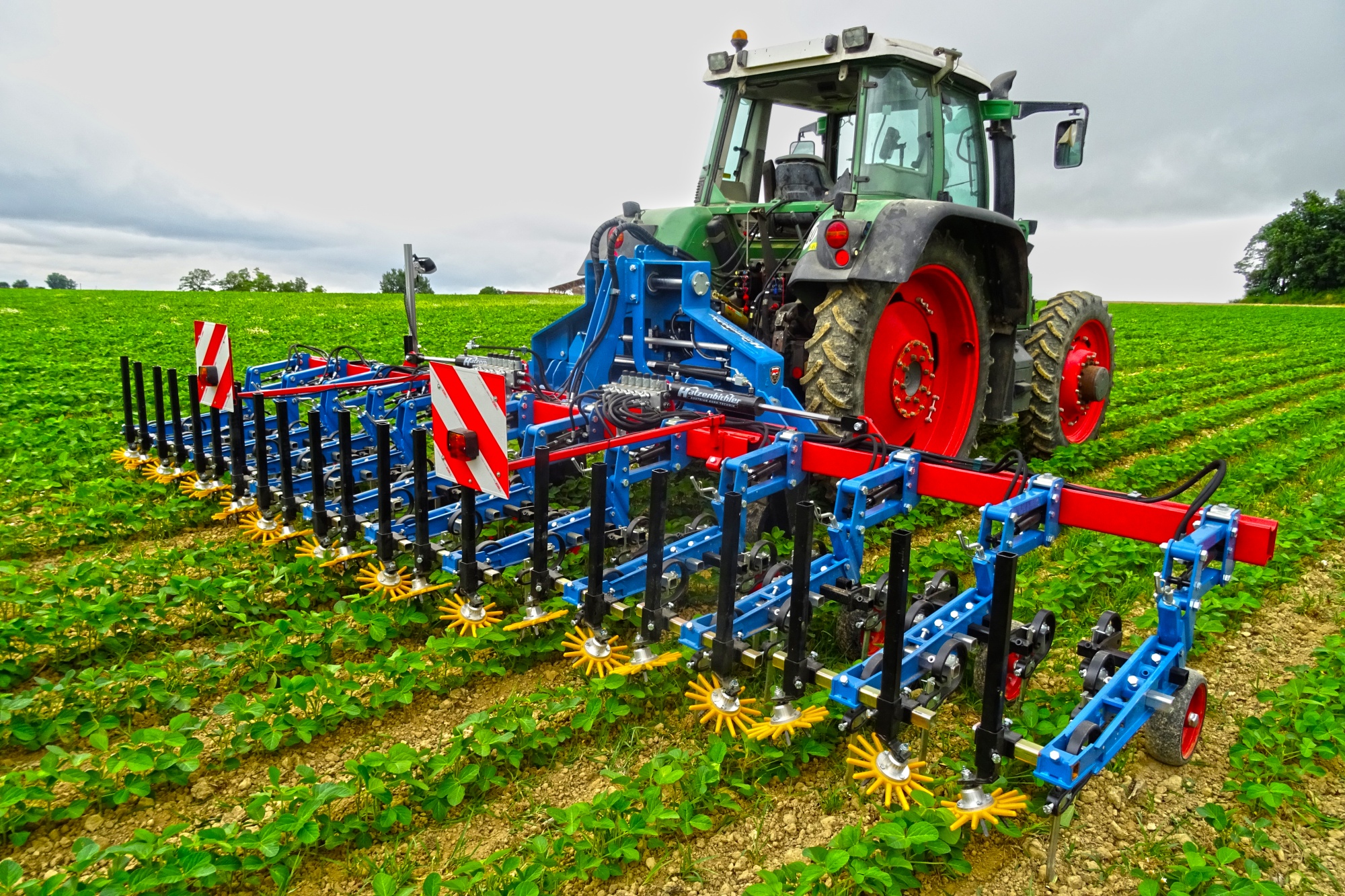

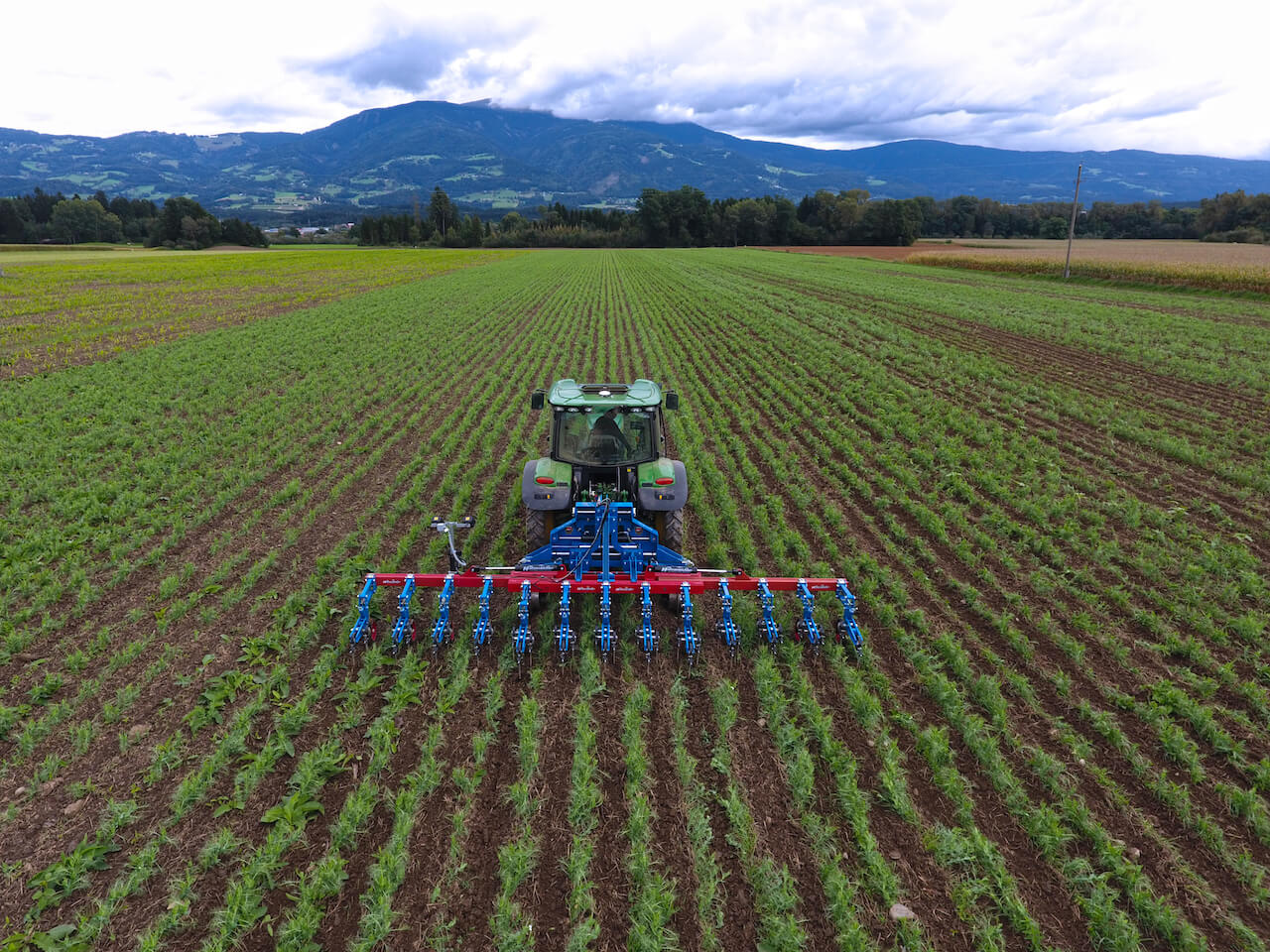

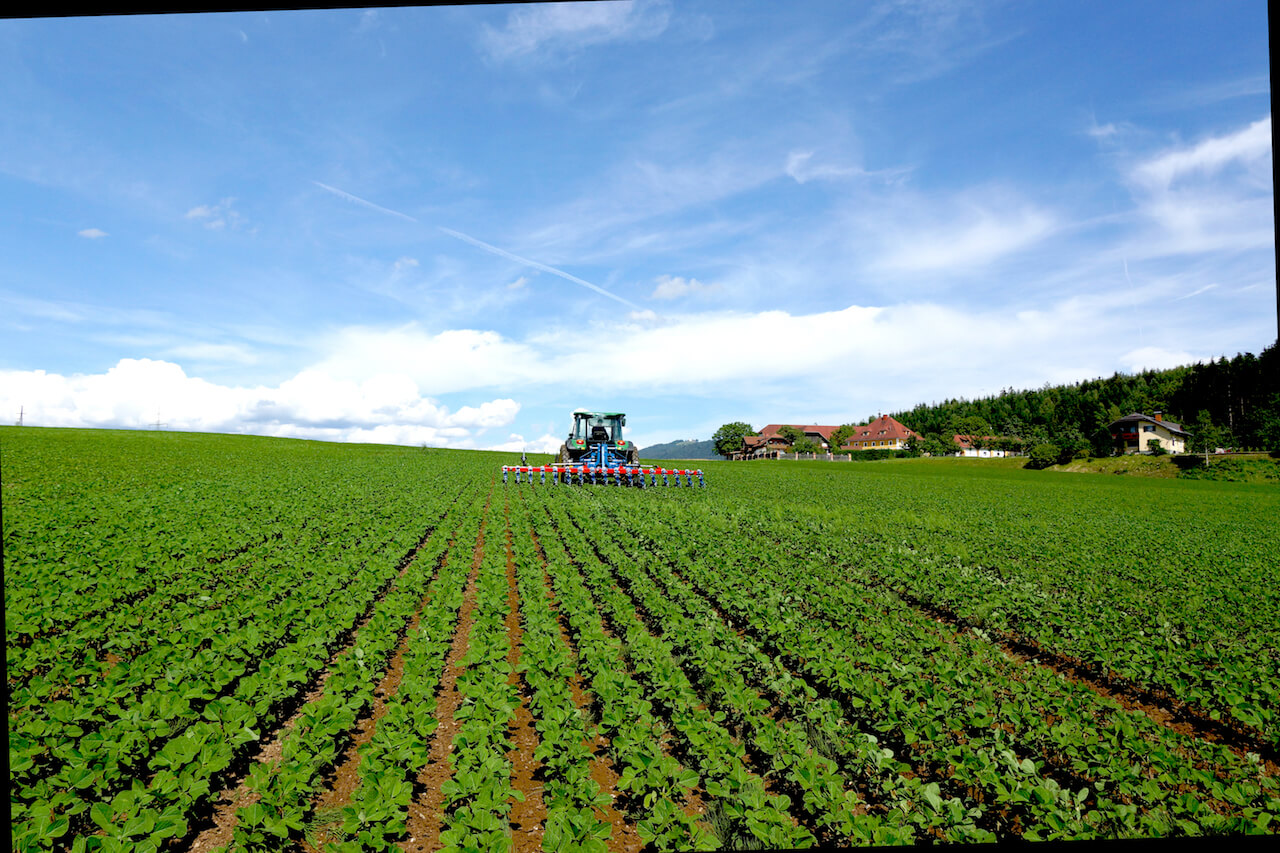

Camera steering assistant in use

Technical details

Camera steering assistant

"Light" model

  • for interrow cultivator with simple tube frame
  • for interrow cultivator up to 6-rows working width
  • hardened chrome bar diameter 60mm
  • dual cylinder
  • optional stabilizer wheels
  • weight approx.:450 kg
  • trailers category: KAT II

"Standard" model

  • for interrow cultivator with double tube frame
  • for interrow cultivator from 6 up to 8 rows working width
  • hardened chrome bar diameter 60mm
  • dual cylinder
  • standard stabilizer wheels (2 pieces)
  • weight approx.: 1.150 kg
  • Gauge: 1.400mm up to max. 2.100mm
  • trailers category: KAT III

"Heavy XL" model

  • for interrow cultivator with double tue frame with XL-distance
  • for interrow cultivator from 8-rows up 12,00m working width, it depends on what tools are used
  • hardened chrome bar diameter 80mm
  • dual cylinder
  • standard stabilizer wheels (2 pieces)
  • weight approx.: 1.300 kg
  • gauge: 1.400m up to max. 2.100mm
  • trailers category: KAT III
